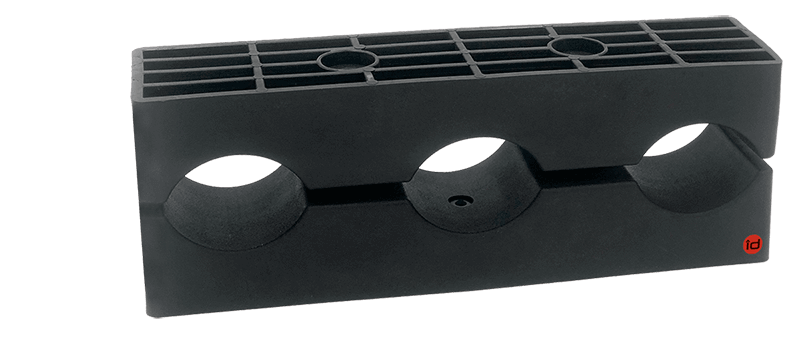

BE Series

The BE Series clamps are block-style clamps for parallel or stacked fastening of single- or multi-core “trailing cables” (indoor or outdoor).  They are made from high-grade fibreglass-reinforced polyamide — non-metallic, UV-protected, low-smoke/zero-halogen (LSZH), self-extinguishing, non-corrosive, non-magnetic and fully recyclable — suitable for harsh environments.

The BE Series supports cables with outer diameters from 50 mm up to 76 mm.  It offers a dynamic short-circuit force resistance of 15,000 N, giving reliable restraint under fault-current conditions.  The clamps are rated for ambient temperature as low as –60 °C, continuous operation up to +120 °C, and short-term heating up to +220 °C, with an expected maintenance-free life of over 45 years.

Installation uses metric screw thread M12 (for the BE3 50/76 clamp), with recommended tightening torque: top part 8 Nm, bottom part 20 Nm.
