Elastic Inlay

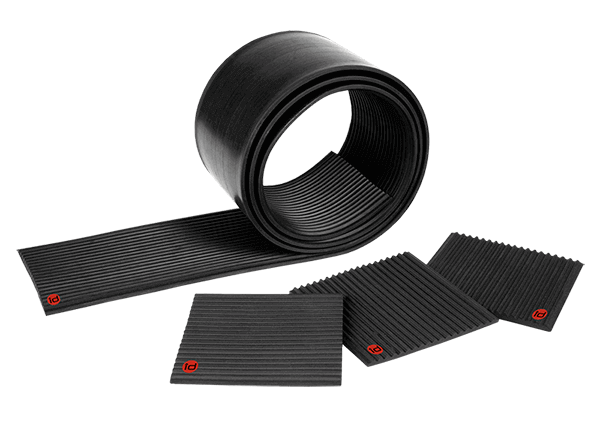

Elastic Inlays (EE) are EPDM rubber inserts designed to work exclusively with îd-Technik cable clamps for vibration-damped cable fastening. The one-side ribbed black material provides elastic compression to accommodate diameter variations, prevent cable damage from load/temperature changes, and absorb vibrations—particularly important in applications like wind turbines and vertical installations. Operating reliably from -60°C to +120°C, these inlays maintain flexibility in extreme conditions while resisting UV, ozone, salt spray, and chemical exposure.

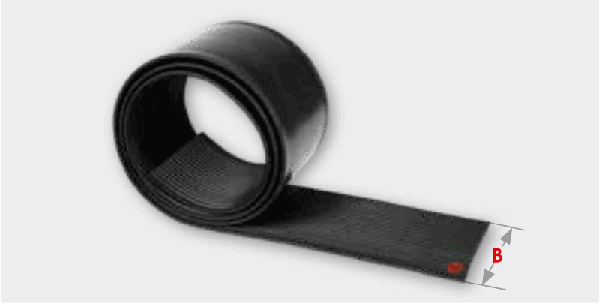

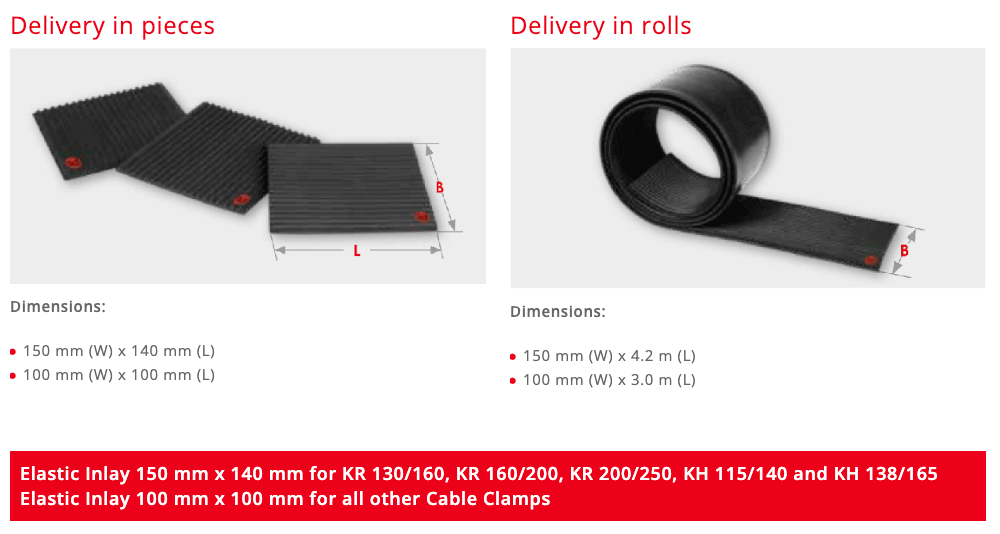

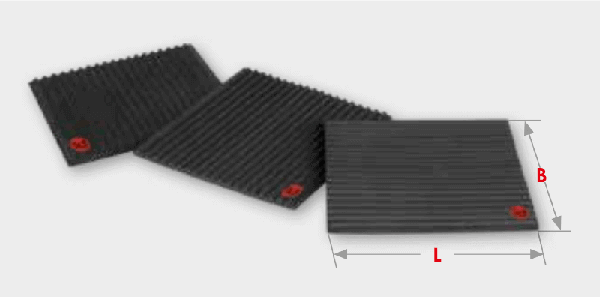

Available in two sizes (150mm x 140mm for larger clamps, 100mm x 100mm for standard clamps), elastic inlays can be supplied in individual pieces or rolls. They’re also available factory-fitted to K, KT, KS, and KP series clamps. The material is recyclable and complies with RoHS and REACH regulations, providing decades of continuous functionality while compensating for vibrations without reducing retention forces.
