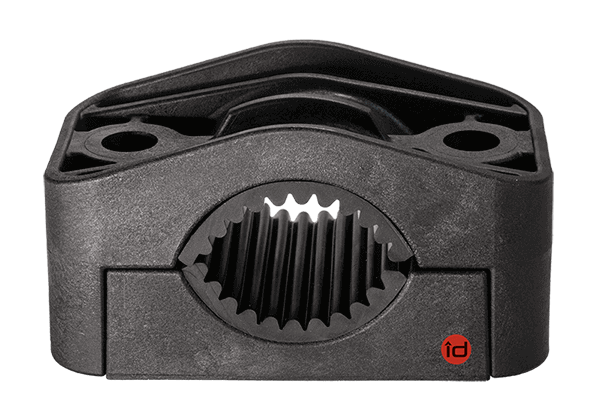

K Series with factory fixed Elastic Inlays (EE)

The K Series EE clamps are robust, fibreglass-reinforced polyamide clamps (non-metallic, UV-protected, recyclable, low-smoke, zero-halogen) designed to secure single- or multi-core cables indoors or outdoors.

They accommodate cables with outer diameters from 19 mm up to 84 mm. With elastic inlays made of ribbed EPDM (factory-fitted), these clamps cushion cables against changes in diameter due to load or temperature, reduce pressure on cable jackets, absorb vibrations, and improve retention — especially when cables run vertically or on inclines.

Performance-wise, they withstand dynamic forces from short-circuit currents up to 12,500 N and operate reliably in temperatures from –60 °C to +120 °C (with short-term tolerance up to 220 °C). Their design supports single, parallel, stacked or bundled cable configurations with maintenance-free operation for decades.
